6BK19320BA000AA0

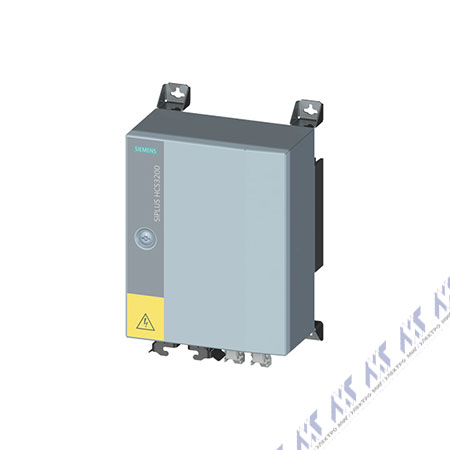

SIPLUS HCS3200 FAN COMPACT HEATING CONTROL SYSTEM WITH PROTECTION DEGREE IP65.9 POWER OUTPUT CHANNELS WITH MAX.4000W EACH AND 1 FAN OUTPUT WITH MAX.500W. EACH POWER OUTPUT CHANNEL (FORWARD LINE AND REVERSE LINE) IS PROTECTED WITH 2 FUSES 16A GG 10X38MM. THE FAN OUTPUT IS PROTECTED WITH 1 FUSE CLASS GG 4A 10X38MM. 2-PHASE POWER SUPPLY VIA 4-POLE HAN-CONNECTOR. HEATER AND FAN ARE CONNECTED VIA 20-POLE HAN-CONNECTOR. PROFIBUS DP IN/-OUTPUT AND POWER SUPPLY 24VDC VIA HAN-BRID CONNECTORS. MATING CONNECTORS ARE N
